Model X3C21P1-03S
Rev C
4-Way Splitter/Combiner Network
Amplitude and
* 50 ?
Termination
* 50 ?
Term.
Input
* 50 ?
Termination
* 50 ?
Termination
Phase tracking
Devices
Amplitude and
Phase tracking
Output
* 50 ?
Term.
Devices
* 50 ?
Termination

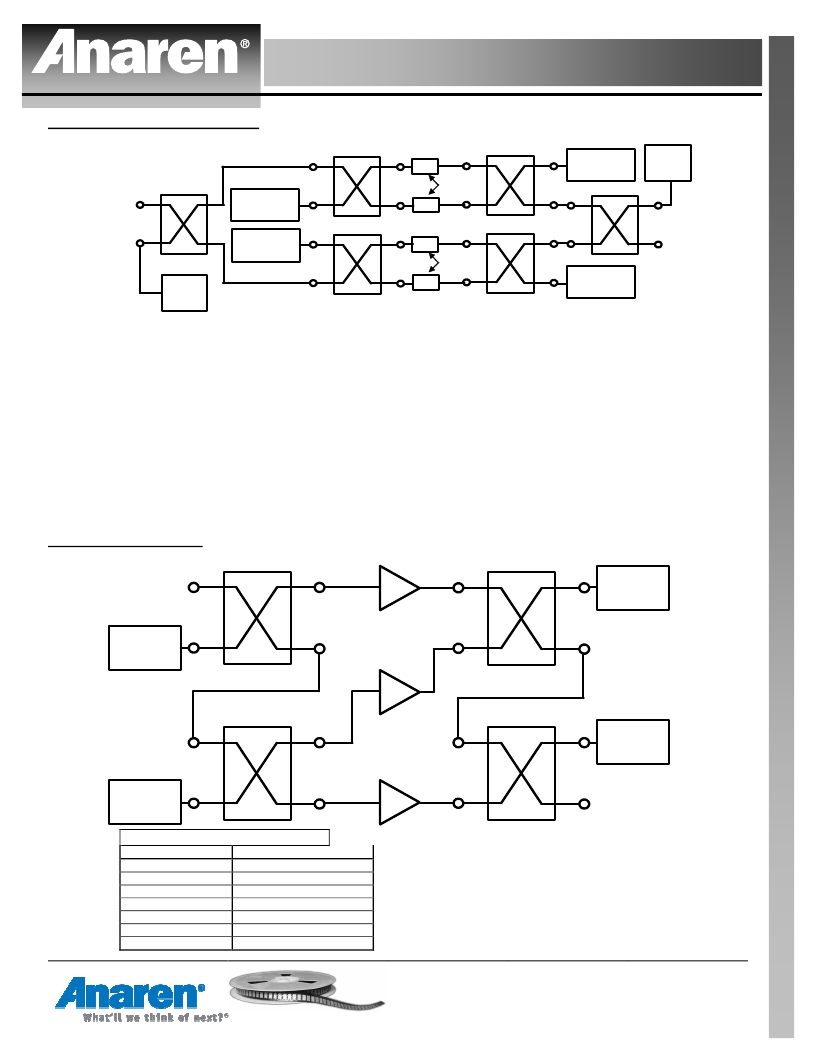

The splitter/combiner networks illustrated above use only 3dB (hybrid) couplers and are limited to binary divisions (2
n
number of splits, where n is an integer). Splitter/combiner circuits configured this way are known as “corporate”
networks. When a non-binary number of divisions is required, a “serial” network must be used. Serial networks can be
designed with [3, 4, 5, .., n] splits, but have a practical limitation of about 8 splits.
A 5dB coupler is used in conjunction with a 3dB coupler to build 3-way splitter/combiner networks. An ideal version of
this network is illustrated below. Note what is required; a 50% split (i.e. 3dB coupler) and a 66% and 33% split (which is
actually a 4.77dB coupler, but due to losses in the system, higher coupler values, such as 5dB, are actually better
suited for this function). The design of this type of circuit requires special attention to the losses and phase lengths of
the components and the interconnecting lines. A more in depth look at serial networks can be found in the article
“Designing In-Line Divider/Combiner Networks” by Dr. Samir Tozin, which describes the circuit design in detail and can
be found in the White Papers Section of the Anaren website, www.anaren.com.
3-Way Splitter/Combiner
Pin
5 dB (4.77)
coupler
1/3 Pin
1/3 Pin
3 dB coupler
* 50 ?
Termination
G=1
* 50 ?
Termination
2/3 Pin
1/3 Pin
2/3 Pin
1/3 Pin
G=1
3 dB coupler
5 dB (4.77)
coupler
* 50 ?
Termination
* 50 ?
Termination
1/3 Pin
1/3 Pin
Pout
G=1
*Recommended Terminations
Power (Watts)
8
10
16
20
50
100
200
Model
RFP- 060120A15Z50-2
RFP- C10A50Z4
RFP- C16A50Z4
RFP- C20N50Z4
RFP- C50A50Z4
RFP- C100N50Z4
RFP- C200N50Z4
Available on Tape
and Reel for Pick and
Place Manufacturing.
USA/Canada:
Toll Free:
Europe :
(315) 432-8909
(800) 411-6596
+44 2392-232392
